Fuan Zhongzhi Pump Co., Ltd. We focus on delivering reliable, value-driven AC induction motors engineered for real-world industrial applications. At ZOZHI Motors, dependable performance, cost
The hollow shaft motor adopts a hollow metal tube design and is directly connected to the plunger pump.
It is an excellent choice for high-pressure cleaning equipment.
It uses high-quality materials and 100% copper coils to ensure sufficient output power.
The aluminum metal case has good heat dissipation.
NSK bearings for smooth operation
Application

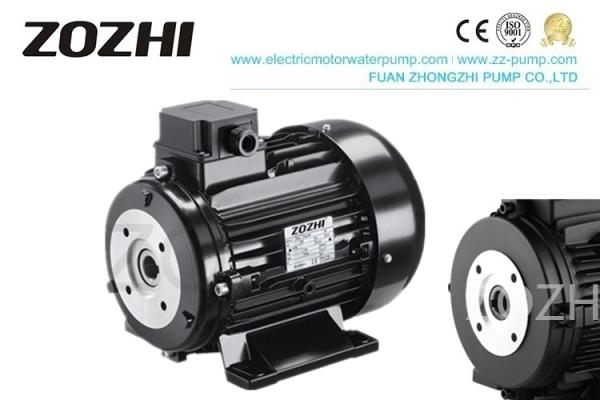

HS132S2-4 7.5KW/10HP Three-phase hollow shaft motor direct-connected to the PXI 350 bar pump can operate at a pressure of up to 350 bar and a water temperature of 65° (149 F).
This MOTOR model is ideal for various applications, such as in-depth cleaning of buildings, washing machines, removing paints and varnishes, removing cement, old painting work and plaster from walls, cleaning scaffolding, and much more.
Data
Three-Phase 4 Poles 1500Rpm 50Hz
FRAME
POWER
RPM
COSφ
EFF.%
VOLT
AMPERE
KW
H.P.
P.F.
V
A
711-4
0.25
0.35
1370
0.73
64
400
0.8
712-4
0.37
0.5
1350
0.74
68
400
1.1
713-4
0.55
0.75
1350
0.75
66
400
1.6
90L1-4
1.5
2
1400
0.82
78
400
3.4
90L2-4
2.2
3
1400
0.79
77
400
5.4
90L3-4
2.6
3.5
1400
0.80
78
400
7.4
100L1-4
2.2
3
1400
0.80
81
400
5.1
100L2-4
3
4
1410
0.80
81
400
6.9
100L3-4
4
5.5
1420
0.80
82
400
9.4
100M1-4
4.4
6
1420
0.82
83
400
10
112M1-4
4
5.5
1420
0.80
83
400
9
112M2-4
5.5
7.5
1430
0.82
84
400
12.1
112M3-4
6.2
8.5
1425
0.82
84
400
13.5
112L-4
7
9.5
1430
0.80
85
400
13.8
132S1-4
5.5
7.5
1430
0.82
84
400
11.7
132S2-4
7.5
10
1430
0.84
84
400
15.4
132M1-4
9.2
12.5
1430
0.90
85
400
17.8
132M2-4
11
15
1430
0.90
87
400
21.3
132M3-4
12.5
17
1430
0.88
84
400
26
160M1-4
15
20
1450
0.86
89
400
29
160M2-4
18.5
25
1450
0.86
90
400
34
Hollow Shaft Motor GUARANTEE:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
OUR SERVICE:
1. Directly factory sale 2. Quick response to 2-8hours, response rates over 92% 3. 24 hours phone call is available. Feel free to contact us. 4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making; also, we can advise how to make the products according to customers' target prices.
FAQ:
1. Q: What's the MOQ? A: We accept one piece. 2. Q: Are you a factory or trading company? A: We are a manufacturer. 3. Q: Can you accept using our logo? A: Yes, we can do OEM for you. 4. Q: What's the warranty period? A: 1 year. 5. Q: What are the terms of payment? A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
