B/F Insulation Class High Efficiency Induction Motor IE3 Cast Iron Body Material

Brand Name : ZOZHI

Model Number : IE3 MOTOR

Certification : ISO

Place of Origin : China

MOQ : 1pc

Price : negotiated

Payment Terms : T/T, L/C

Supply Ability : 10000pcs/month

Delivery Time : 25 working days after received your payment

Packaging Details : Packed in cartons,veneer case or wooden case.

Product Name : IE3 Motor

Body Material : Cast Iron

Output : 0.75kw-315KW

Pole : 2,4,6

Protection class : IP54/IP55

frequency : 60Hz

Rated Voltage : 400V

Insulation Class : B/F

Efficiency Class : IE3

Contact Now

IE3 Motor Efficiency Chart, IE3 Motors Advantages

IE3 motor on YouTuBe

B/F Insulation Class High Efficiency Induction Motor IE3 Cast Iron Body Material

To achieve Higher efficiency with IE3 motors, the actual design of the motors is different from your standard IE2 motor. This is mainly achieved by using more IE3 motors, i.e., more copper, steel, etc.

IE3 motors offer a real tangible saving

According to the new standards, IE1, IE2, IE3 where the IE3 have the highest efficiency.

IE1: Motors with efficiency close to the old class EFF2, but a new standard for testing the motors results lower than the previous EFF2.

IE2: Motors with efficiency close to the old class EFF1, but a new standard for testing the motors results lower than the previous.

IE3: Motors with a higher efficiency level than the previous EFF1, IE3 is also called Premium Efficiency.

Basic Data
No. Brand Name: ZOZHI
1 Model Number: IE3 MOTOR
2 Place of Origin: FUAN, China (mainland)
3 Insulation Class: Class B/F/H
4 Frequency: 60HZ
5 Output Power: 0.75KW-315KW
6 Phase: Three Phase
7 Wire: 100% copper
8 Duty: S1 (continuous)
9 Certification: ISO, C.E.
10 Protect Feature: Enclosed
11 A.C. Voltage: 400V or on request
12 Ambient temperature: -15°C≤0≤40°C
13 Altitude: No exceed 1000m
14 Mounting Type: B35
15 Standard: Conform to IEC international standard
16 Installation: we will send detailed instructions together with the Motors
17 Packaging Details: Packed with export requirements, protect the motors and are convenient for transport.
18 Delivery Details: 25-30 Days

Performance Chart:

NO. Type Output Speed Amps EFF. P.F. LRT/RLT LRA/RLA BDT/RLT Noise Voltage
kW r/min (A) % CosΦ LwdB(A) V
1 IE3-801-2 0.75 2890 1.64 80.7 0.82 2.3 7 2.3 62 400
2 IE3-802-2 1.1 2890 2.31 82.7 0.83 2.2 7.3 2.3 62 400
3 IE3-90S-2 1.5 2890 3.06 84.2 0.84 2.2 7.6 2.3 67 400
4 IE3-90L-2 2.2 2890 4.35 85.9 0.85 2.2 7.6 2.3 67 400
5 IE3-100L-2 3 2895 5.71 87.1 0.87 2.2 7.8 2.3 74 400
6 IE3-112M-2 4 2910 7.45 88.1 0.88 2.2 8.3 2.3 77 400
7 IE3-132S1-2 5.5 2940 10.1 89.2 0.88 2 8.3 2.3 79 400
8 IE3-132S2-2 7.5 2940 13.7 90.1 0.88 2 7.9 2.3 79 400
9 IE3-160M1-2 11 2950 19.6 91.2 0.89 2 8.1 2.3 81 400
10 IE3-160M2-2 15 2950 26.5 91.9 0.89 2 8.1 2.3 81 400
11 IE3-160L-2 18.5 2950 32.5 92.4 0.89 2 8.2 2.3 81 400
12 IE3-180M-2 22 2960 38.5 92.7 0.89 2 8.2 2.3 83 400
13 IE3-200L1-2 30 2970 52.1 93.3 0.89 2 7.6 2.3 84 400
14 IE3-200L2-2 37 2970 64 93.7 0.89 2 7.6 2.3 84 400
15 IE3-225M-2 45 2970 76.8 94 0.9 2 7.7 2.3 86 400
16 IE3-250M-2 55 2980 93.5 94.3 0.9 2 7.7 2.3 89 400
17 IE3-280S-2 75 2980 127 94.7 0.9 1.8 7.1 2.3 91 400
18 IE3-280M-2 90 2980 152 95 0.9 1.8 7.1 2.3 91 400
19 IE3-315S-2 110 2980 185 95.2 0.9 1.8 7.1 2.3 92 400
20 IE3-315M-2 132 2980 224 94.5 0.9 1.8 7.1 2.3 92 400
21 IE3-315L1-2 160 2980 265 95.6 0.91 1.8 7.2 2.3 92 400
22 IE3-315L2-2 200 2980 331 95.8 0.91 1.8 7.2 2.2 92 400
23 IE3-355M-2 250 2980 414 95.8 0.91 1.6 7.2 2.2 100 400
24 IE3-355L-2 315 2980 522 95.8 0.91 1.6 7.2 2.2 100 400
25 IE3-802-4 0.75 1430 1.75 82.5 0.75 2.3 6.6 2.3 56 400
26 IE3-90S-4 1.1 1440 2.48 84.1 0.76 2.3 6.8 2.3 59 400
27 IE3-90L-4 1.5 1440 3.3 85.3 0.77 2.3 7 2.3 59 400
28 IE3-100L1-4 2.2 1455 4.52 86.7 0.81 2.3 7.6 2.3 64 400
29 IE3-100L2-4 3 1455 6.02 87.7 0.82 2.3 7.6 2.3 64 400
30 IE3-112M-4 4 1460 7.95 88.6 0.82 2.2 7.8 2.3 65 400
31 IE3-132S-4 5.5 1470 10.7 89.6 0.83 2 7.9 2.3 71 400
32 IE3-132M-4 7.5 1470 14.3 90.4 0.84 2 7.5 2.3 71 400
33 IE3-160M-4 11 1470 20.4 91.4 0.85 2.2 7.7 2.3 73 400
34 IE3-160L-4 15 1470 27.3 92.1 0.86 2.2 7.8 2.3 73 400
35 IE3-180M-4 18.5 1475 33.5 92.6 0.86 2 7.8 2.3 76 400
36 IE3-180L-4 22 1475 39.7 93 0.86 2 7.8 2.3 76 400
37 IE3-200L-4 30 1480 53.8 93.6 0.86 2 7.8 2.3 76 400
38 IE3-225S-4 37 1485 66.1 93.9 0.86 2 7.4 2.3 78 400
39 IE3-225M-4 45 1485 80.2 94.2 0.86 2 7.4 2.3 78 400
40 IE3-250M-4 55 1485 97.6 94.6 0.86 2 7.4 2.3 79 400
41 IE3-280S-4 75 1485 129 95 0.88 2 6.9 2.3 80 400
42 IE3-280M-4 90 1485 155 95.2 0.88 2 6.9 2.3 80 400
43 IE3-315S-4 110 1485 187 95.4 0.89 2 7 2.2 88 400
44 IE3-315M-4 132 1485 224 95.6 0.89 2 7 2.2 88 400
45 IE3-315L1-4 160 1485 271 95.8 0.89 2 7.1 2.2 88 400
46 IE3-315L2-4 200 1485 334 96 0.9 2 7.1 2.2 88 400
47 IE3-355M-4 250 1490 418 96 0.9 2 7.1 2.2 95 400
48 IE3-355L-4 315 1490 526 96 0.9 2 7.1 2.2 95 400
49 IE3-90S-6 0.75 955 1.93 78.9 0.71 2 6 2.1 57 400
50 IE3-90L-6 1.1 955 2.69 81 0.73 2 6 2.1 57 400
51 IE3-100L-6 1.5 955 3.6 82.5 0.73 2 6.5 2.1 61 400
52 IE3-112M-6 2.2 970 5.09 84.3 0.74 2 6.6 2.1 65 400
53 IE3-132S-6 3 970 6.84 85.6 0.74 2 6.8 2.1 69 400
54 IE3-132M1-6 4 970 8.99 86.8 0.74 2 6.8 2.1 69 400
55 IE3-132M2-6 5.5 970 12 88 0.75 2 7 2.1 69 400
56 IE3-160M-6 7.5 980 15.4 89.1 0.79 2 7 2.1 73 400
57 IE3-160L-6 11 980 22 90.3 0.8 2 7.2 2.1 73 400
58 IE3-180L-6 15 980 29.3 91.2 0.81 2 7.3 2.1 73 400
59 IE3-200L1-6 18.5 985 36 91.7 0.81 2 7.3 2.1 73 400
60 IE3-200L2-6 22 985 42.5 92.2 0.81 2 7.4 2.1 73 400
61 IE3-225M-6 30 985 56.2 92.9 0.83 2 6.9 2.1 74 400
62 IE3-250M-6 37 990 68.1 93.3 0.84 2 7.1 2.1 76 400
63 IE3-280S-6 45 990 81.6 93.7 0.85 2 7.3 2 78 400
64 IE3-280M-6 55 990 98.1 94.1 0.86 2 7.3 2 78 400
65 IE3-315S-6 75 990 136 94.6 0.84 2 6.6 2 83 400
66 IE3-315M-6 90 990 161 94.9 0.85 2 6.7 2 83 400
67 IE3-315L1-6 110 990 196 95.1 0.85 2 6.7 2 83 400
68 IE3-315L2-6 132 990 232 95.4 0.86 2 6.8 2 83 400
69 IE3-355M1-6 160 990 281 95.6 0.86 1.8 6.8 2 85 400
70 IE3-355M2-6 200 990 346 95.8 0.87 1.8 6.8 2 85 400
71 IE3-355L1-6 250 990 433 95.8 0.87 1.8 6.8 2 85 400
72 IE3-355L2-6 315 990 552 95.8 0.86 1.8 6.8 2 85 400


B/F Insulation Class High Efficiency Induction Motor IE3 Cast Iron Body Material

B/F Insulation Class High Efficiency Induction Motor IE3 Cast Iron Body Material

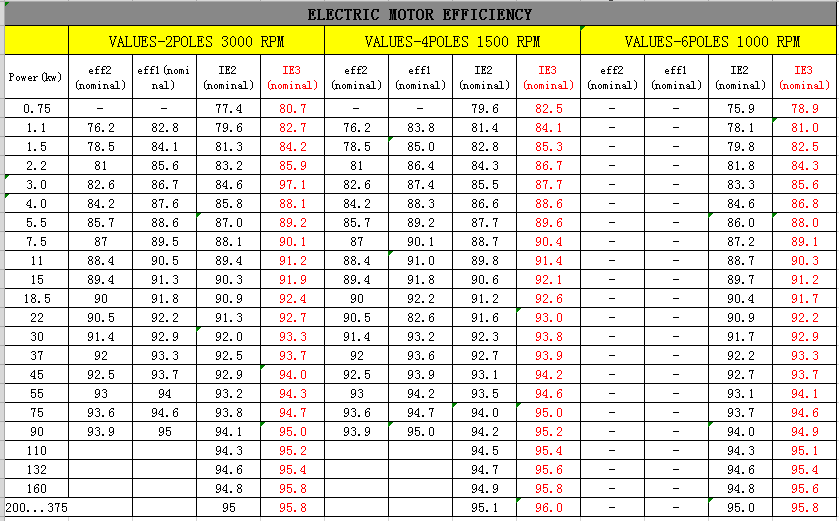

Performance comparison chart:

B/F Insulation Class High Efficiency Induction Motor IE3 Cast Iron Body Material

IE3 Motor Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

IE3 Motor Our Service:

1. Free maintenance within 12 months guarantee.
2. We cooperate with customers to design and develop a new product.
3. We'd like to assist you in arranging delivery things, test things, or others on your request.
4. Customize production.
1. We are professional manufacture with more than 13 years experience in Electric motor
2. We are Made in China Gold Supplier
3. we test the material before production and three to four times when producing to ensure the goods in good quality, also we make accord icuirement
4. we can be your OEM manufacturer with your authorization of the brand.


FAQ:


1. Q: What's the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What's the warranty period?
A: 1 year.

5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
