Y2 Series Three-Phase Induction Motor 2pole 0.18-315Kw with low-temperature, low noise
3 Phase Induction Motor
PRODUCT DESCRIPTIONS
The Y2 series motor is rated at 380V. The rated frequency is 50Hz. The electric motor is a fully enclosed, self-cooling, squirrel-cage three-phase asynchronous motor. The power rating and mounting dimensions are fully compliant with IEC and DIN 42673 standards. The insulation rating is F. The enclosure protection rating is IP54. The cooling method is ICO141. The working mode is the S1 continuous working system. The junction box is located on the top of the motor. It can be moved at 90-degree intervals. It can wire from any direction in front, back, left, and right. The top outline size and junction box are different from the Y series.
APPLICATIONS

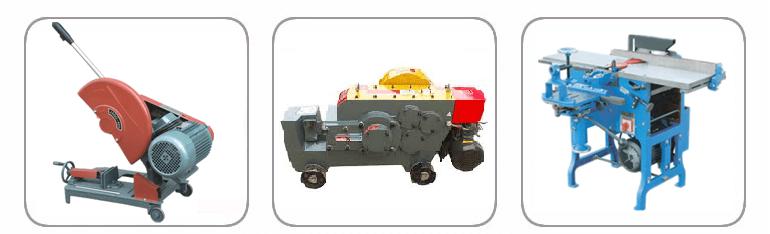

It concentrates on the advantages of large starting torque, stable operation, low-temperature rise, low noise, and good overload performance. These motors are widely used in small machinery, medical equipment, household appliances, fans, machinery, instrumentation, chemical instrumentation, textiles, agricultural machinery, and so on.
THREE-PHASE INDUCTION MOTOR FEATURES
1. Consistent performance
2. Low maintenance
3. Suitable for mounting in any position
4. Easy to operate
3 Phase Induction Motor OPERATING LIMITS
1. Priming voltage: 380V or any voltage between 220-760V
2. Sea level: not exceed 1000m. If over, the power will be down
3. Environment temperature: -15℃ ≦ 0 ≦ 40℃
4. Protection: IP44 / IP54 / IP55
5. Insulation Class: B / F / H
Details
  | THE COPPER COILS The coil adopts the new national standard copper wire to ensure the high efficiency, stability, and safe operation of the motor |
| BEARING Ensure motor service life, high strength carbon steel quality, with good dust-proof effect |  |
 | HIGH PRECISION ROTOR New national standard rotor,multi-precision processing, through rigorous dynamic and static balance test, to ensure smooth operation and low noise |
PERFORMANCE CHART
| Ist/In | Power | (A) | Power | Eff. (%) | Speed | Tstart/Tn | Ist/In | Tmax/Tn |
| (kw) | Factor | (r/min) |
| Synchronous Speed 3000 r/min (2 Poles) |
| Y2-631-2 | 0.18 | 0.52 | 0.8 | 65 | 2825 | 2.2 | 5.5 | 2.2 |
| Y2-362-2 | 0.25 | 0.69 | 0.81 | 68 | 2840 | 2.2 | 5 | 2.2 |
| Y2-711-2 | 0.37 | 0.99 | 0.82 | 70 | 2840 | 2.2 | 6 | 2.2 |
| Y2-712-2 | 0.55 | 1.4 | 0.83 | 73 | 2880 | 2.2 | 6 | 2.2 |
| Y2-801-2 | 0.75 | 1.8 | 0.84 | 75 | 2890 | 2.2 | 6 | 2.2 |
| Y2-802-2 | 1.1 | 2.6 | 0.84 | 77 | 2900 | 2.2 | 7 | 2.2 |
| Y2-90S-2 | 1.5 | 3.4 | 0.85 | 79 | 2900 | 2.2 | 7 | 2.2 |
| Y2-90L-2 | 2.2 | 4.8 | 0.87 | 81 | 29000 | 2.2 | 7 | 2.2 |
| Y2-100L-2 | 3 | 6.3 | 0.88 | 83 | 2930 | 2.2 | 7 | 2.2 |
| Y2-112M-2 | 4 | 8.1 | 0.88 | 85 | 2930 | 2.2 | 8 | 2.2 |
| Y2-132S1-2 | 5.5 | 11 | 0.88 | 86 | 2940 | 2.2 | 8 | 2.2 |
| Y2-132S2-2 | 7.5 | 15 | 0.88 | 87 | 2950 | 2.2 | 8 | 2.2 |
| Y2-160M1-2 | 11 | 21.3 | 0.89 | 88 | 2950 | 2 | 8 | 2.2 |
| Y2-160M2-2 | 15 | 28.7 | 0.9 | 89 | 2970 | 2 | 8 | 2.2 |
| Y2-160L-2 | 18.5 | 34.6 | 0.9 | 90 | 2970 | 2 | 8 | 2.2 |
| Y2-180M-2 | 22 | 40.9 | 0.9 | 90 | 2970 | 2 | 8 | 2.2 |
| Y2-200L1-2 | 30 | 55.4 | 0.9 | 91.2 | 2970 | 2 | 8 | 2.2 |
| Y2-200L2-2 | 37 | 67.7 | 0.9 | 92 | 2980 | 2 | 8 | 2.2 |
| Y2-225M-2 | 45 | 82.3 | 0.9 | 92.3 | 2980 | 1.8 | 8 | 2.2 |
| Y2-250M-2 | 55 | 101 | 0.9 | 92.5 | 2980 | 1.8 | 7 | 2.2 |
| Y2-280S-2 | 75 | 134 | 0.9 | 93 | 2980 | 1.8 | 7 | 2.2 |
| Y2-280M-2 | 90 | 160 | 0.91 | 93.8 | 2980 | 1.8 | 7 | 2.2 |
| Y2-315S-2 | 110 | 195 | 0.91 | 94 | 2980 | 1.8 | 6.8 | 2.2 |
| Y2-315M-2 | 132 | 233 | 0.91 | 94.5 | 2980 | 1.8 | 6.8 | 2.2 |
| Y2-315L1-2 | 160 | 279 | 0.92 | 94.6 | 2980 | 1.8 | 6.8 | 2.2 |
| Y2-315L2-2 | 200 | 348 | 0.92 | 94.8 | 2980 | 1.8 | 6.8 | 2.2 |
| Y2-355M1-2 | 250 | 433 | 0.92 | 95.3 | 2980 | 1.6 | 7 | 2.2 |
| Y2-355L2-2 | 315 | 544 | 0.92 | 95.6 | 2980 | 1.6 | 7.1 | 2.2 |
3 Phase Induction Motor GUARANTEE
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
OUR SERVICE
1. Directly factory sale.
2. Quick response to 2-8hours, response rates over 92%.
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
FAQ
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
