Y2 Series Three-Phase Induction Motor 8 pole 0.18-200KW cast iron asynchronous motor
3 Phase Induction Motor
PRODUCT DESCRIPTIONS
Y2 series cast iron three-phase induction motor has the advantages of beautiful appearance, excellent performance, convenient maintenance, low-temperature rise, low noise, and strong overload capability. They are made of high-quality cast iron, all-copper core, low-quality, high-quality insulation combined with a complete insulation system for higher thermal stability and more extended thermal insulation.
1. Ambient temperature: -15 ° C <0 <40 ° C
2. Altitude: no more than 1000 meters
3. Responsibility / Rating: Continuous (S1)
4. Insulation grade: B / F.
5. Protection level: IP54 / IP54
6. Cooling method: ICO411
APPLICATIONS

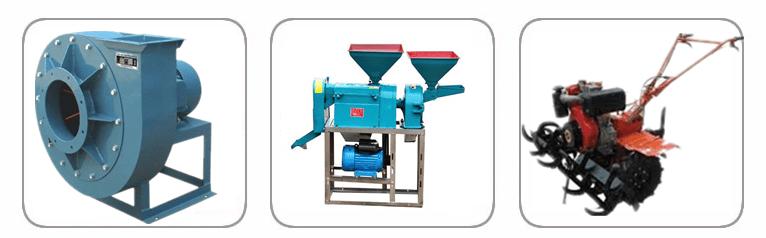

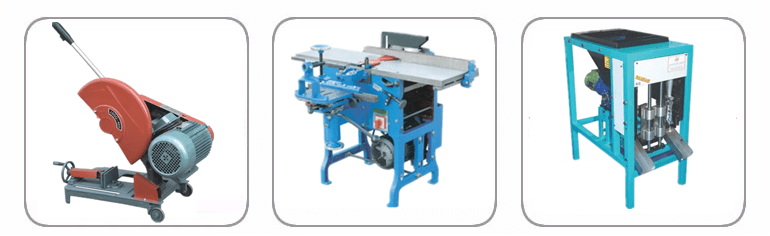

The electric motor has the advantages of high efficiency, energy saving, low noise, slight vibration, lightweight, convenient operation, maintenance, etc. Therefore, it can be widely used in various general mechanical equipment such as fans, pumps, machine tools, compressors, transportation machinery, and the like.
THREE-PHASE INDUCTION MOTOR FEATURES
1. Consistent performance
2. Low maintenance
3. Suitable for mounting in any position
4. Easy to operate
3 Phase Induction Motor Details
  | THE COPPER COILS The coil adopts the new national standard copper wire to ensure the high efficiency, stability, and safe operation of the motor |

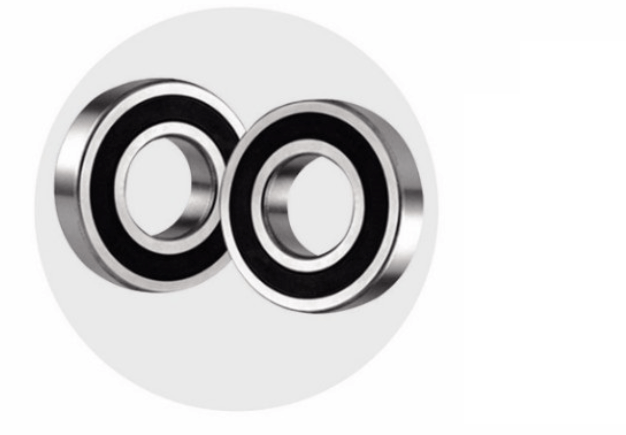

| BEARING Ensure motor service life, high strength carbon steel quality, with good dust-proof effect |  |

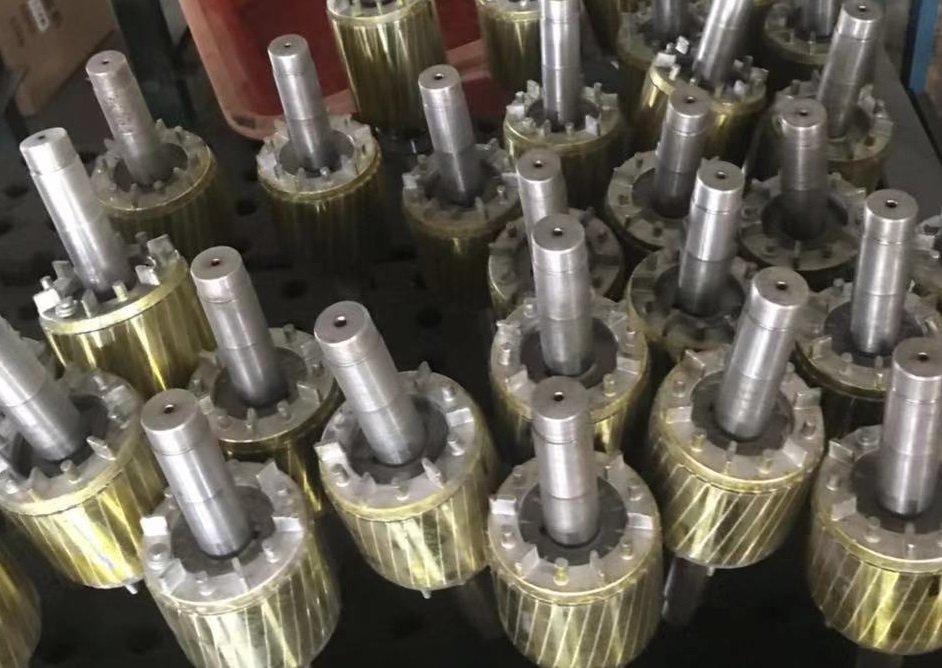

 | HIGH PRECISION ROTOR New national standard rotor,multi-precision processing, through rigorous dynamic and static balance test, to ensure smooth operation and low noise |
PERFORMANCE CHART
| Ist/In | Power | (A) | Power | Eff. (%) | Speed | Tstart/Tn | Ist/In | Tmax/Tn |
| (kw) | Factor | (r/min) |
| Synchronous Speed 750 r/min (8 Poles) |
| Y2-801-8 | 0.18 | 0.88 | 0.61 | 51 | 680 | 1.8 | 3.3 | 1.9 |
| Y2-802-8 | 0.25 | 1.15 | 0.61 | 54 | 680 | 1.8 | 3.3 | 1.9 |
| Y2-90S-8 | 0.37 | 1.5 | 0.61 | 62 | 680 | 1.8 | 4 | 1.9 |
| Y2-90L-8 | 0.55 | 2.2 | 0.61 | 63 | 700 | 1.8 | 4 | 2 |
| Y2-100L1-8 | 0.75 | 2.4 | 0.67 | 71 | 700 | 1.8 | 4 | 2 |
| Y2-100L2-8 | 1.1 | 3.3 | 0.69 | 73 | 700 | 1.8 | 5 | 2 |
| Y2-112M-8 | 1.5 | 4.5 | 0.69 | 75 | 700 | 1.8 | 5 | 2 |
| Y2-132S-8 | 2.2 | 6 | 0.71 | 78 | 710 | 2 | 6 | 2 |
| Y2-132M-8 | 3 | 7.9 | 0.73 | 79 | 710 | 2 | 6 | 2 |
| Y2-160M1-8 | 4 | 10 | 0.73 | 81 | 720 | 2 | 6 | 2 |
| Y2-160M2-8 | 5.5 | 13.6 | 0.74 | 83 | 720 | 2 | 6 | 2 |
| Y2-160L-8 | 7.5 | 17.7 | 0.75 | 85.5 | 720 | 2 | 6 | 2 |
| Y2-180L-8 | 11 | 25.1 | 0.76 | 87.5 | 730 | 2 | 6.6 | 2 |
| Y2-200L-8 | 15 | 34 | 0.76 | 88 | 730 | 2 | 6.6 | 2 |
| Y2-225S-8 | 18.5 | 40 | 0.76 | 90 | 740 | 1.9 | 6.6 | 2 |
| Y2-225M-8 | 22 | 47 | 0.78 | 90.5 | 740 | 1.9 | 6.6 | 2 |
| Y2-250M-8 | 30 | 64 | 0.79 | 91 | 740 | 1.9 | 6.6 | 2 |
| Y2-280S-8 | 37 | 78 | 0.79 | 91.5 | 740 | 1.9 | 6.6 | 2 |
| Y2-280M-8 | 45 | 94 | 0.79 | 92 | 740 | 1.9 | 6.6 | 2 |
| Y2-315S-8 | 55 | 111 | 0.81 | 92.8 | 740 | 1.8 | 6.6 | 2 |
| Y2-315M-8 | 75 | 151 | 0.81 | 93 | 740 | 1.8 | 6.6 | 2 |
| Y2-315L1-8 | 90 | 178 | 0.82 | 93.8 | 740 | 1.8 | 6.6 | 2 |
| Y2-315L2-8 | 110 | 217 | 0.82 | 94 | 740 | 1.8 | 6.4 | 2 |
| Y2-355M1-8 | 132 | 261 | 0.82 | 93.7 | 740 | 1.8 | 6.4 | 2 |
| Y2-355M2-8 | 160 | 313 | 0.82 | 94.2 | 740 | 1.8 | 6.4 | 2 |
| Y2-355L-8 | 200 | 388 | 0.83 | 94.5 | 740 | 1.8 | 6.4 | 2 |
3 Phase Induction Motor GUARANTEE
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
OUR SERVICE
1. Directly factory sale.
2. Quick response to 2-8hours, response rates over 92%.
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
FAQ
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
